Computer Servo Universal Testing Machine UP-2003 for Metal Rubber Plastic Peel Compression Bend Test

Model Number : UP-2003

Test Speed : 0.1~500mm/min Adjustable

Packaging Details : Professional Export Wooden Box Packaging

Unit Selection : KG, N, KN, LBF

MOQ : 1 Unit

Delivery Time : 5-15 work days

Effective Stroke : 800mm (Customizable)

Power Source : AC110-220V

Payment Terms : T/T,D/P,Western Union,Paypal

Control Mode : Computer Servo Control

Brand Name : YOUBI

Load Range : 1~50kN (100-5000kg Optional)

Place of Origin : CHINA

Force Resolution : 1/100,000

Price : Negotiable

Effective Width : 400mm (Customizable)

Supply Ability : 30 Unit/month

Acquisition Module : 24-bit High Resolution

Certification : CE,ISO

Speed Accuracy : ±1% (Class 1)

Contact Now

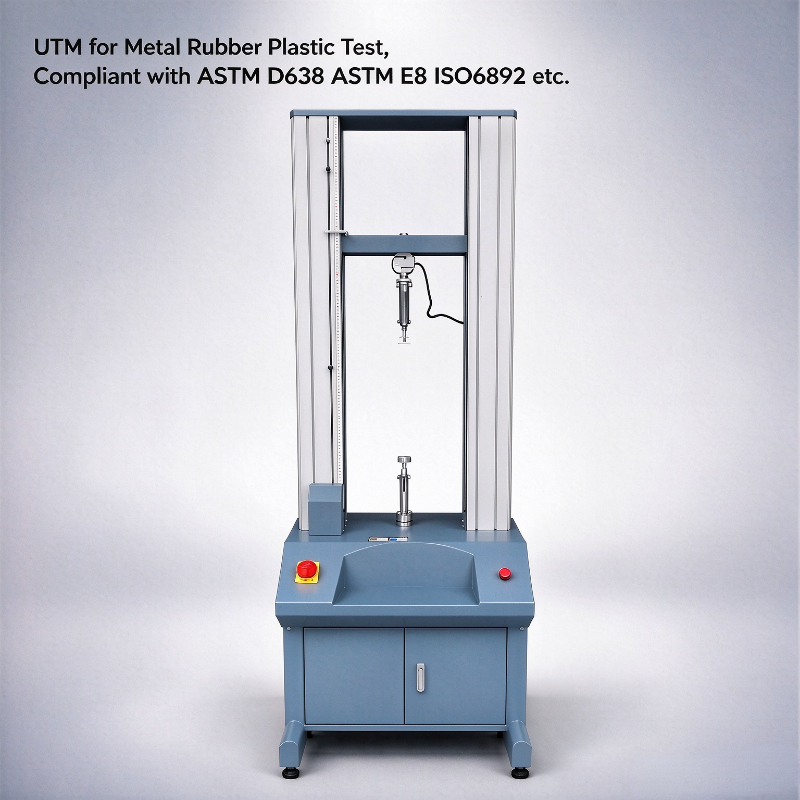

Computer Servo Double Column Universal Tensile Testing Machine Model UP-2003

Our double column servo universal tensile testing machine is designed for tensile, compression, peel, shear, tear and bending tests. It is widely used to test metal, rubber, plastic, textile, leather, shoe materials and other raw materials & finished products.
The equipment complies with international test standards including ASTM D638, ASTM E8, ISO 6892, etc. Suitable for quality inspection laboratories, research institutes and manufacturing factories.

Computer Servo Universal Testing Machine UP-2003 for Metal Rubber Plastic Peel Compression Bend Test

Main Features:

High precision servo motor and drive system, stable running and accurate test data
24-bit high-resolution acquisition module, test result repeatability
Computer control, professional test software, automatically generate test curve & report
Multiple safety protection: overload protection, limit stop, emergency stop button
Modular fixture design, easy to change different jigs for various material tests
Heavy-duty aluminum alloy double column frame, durable and low noise

Computer Servo Universal Testing Machine UP-2003 for Metal Rubber Plastic Peel Compression Bend Test

Technical Specifications:

Item	Parameter
Load Capacity	50kg ~ 5000kg optional
Force Resolution	1/100000
Test Speed	0.1 ~ 500 mm/min adjustable
Effective Stroke	800mm (custom available)
Effective Width	400mm
Control Mode	Computer servo control
Standards	ASTM D638, ASTM E8, ISO 6892

Machine Structure & Detail:

Solid cabinet base with adjustable foot casters, easy to move and level the machine on lab ground. Independent control panel with emergency stop button for safe operation.

Computer Servo Universal Testing Machine UP-2003 for Metal Rubber Plastic Peel Compression Bend Test

Application Fields:

Plastic & Rubber Industry
Metal Material Factory
Textile & Non-woven Fabric
Shoe & Leather Products
Packaging & Composite Materials
Research & QC Laboratory

Our Service:

Factory direct supply, competitive price
Custom load capacity, stroke and fixtures
English operation software & user manual
12 months warranty, lifetime technical support
Professional pre-sales test solution recommendation

Send inquiry now to get quotation and test solution!

FAQ:
1. Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?
Yes, we are the one of professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment... in China. Every machine purchased from our factory has 12 month warranty after shipment. Generally, we offer 12 months for FREE maintenance. while considering sea transportation, we can extend 2 months for our customers.
Moreover, If your machine doesn't work, you can send us an e-mail or call us we will try our best to find the problem through our conversation or by video chat if necessary. Once we have confirmed the problem, the solution will be offered within 24 to 48 hours.
2. What about the delivery term?
For our standard machine which means normal machines, If we have stock in the warehouse, is 3-7 working days;
If there is no stock, normally, the delivery time is 15-20 working days after payment is received;
If you are in urgent need, we will make a special arrangement for you.
3. Do you accept customization services? Can I have my logo on the machine?
Yes, of course. We can not only offer standard machines but also customized machines according to your requirements. And we can also put your logo on the machine which means we offer OEM and ODM service.
4. How can I install and use the machine?
Once you have ordered the testing machines from us, we will send you the operation manual or video in English version through Email.
Most of our machine is shipped with a whole part, which means it is already installed, you just need to connect the power cable and start to use it. And if it's necessary, we can also assist you to install your machine on-site.
