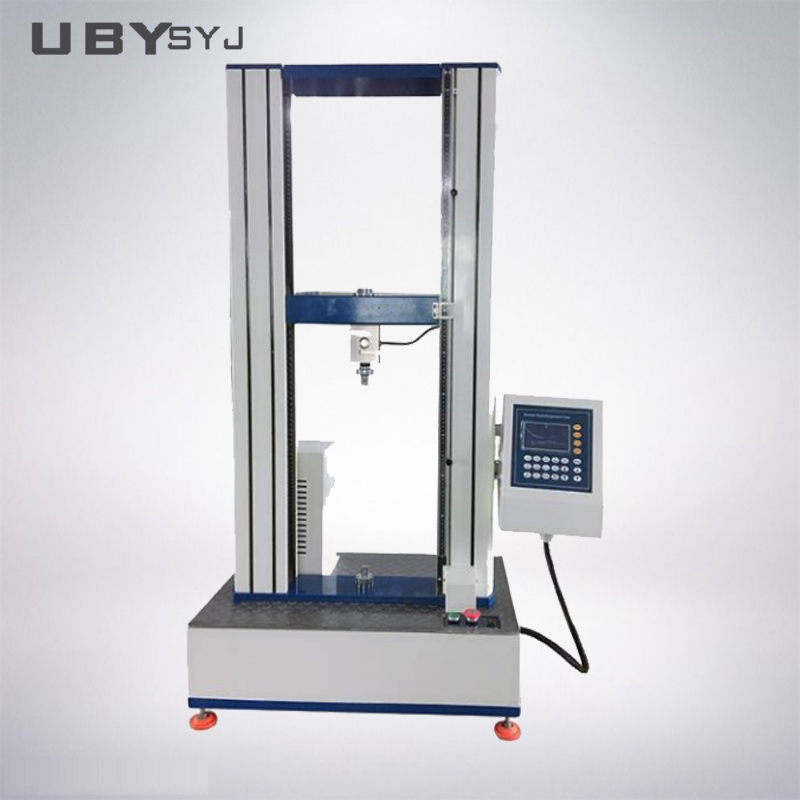

UP-2002 Dual Column Universal Tensile Testing Machine with Touch Screen and Interchangeable Fixtures
Product Overview
The UP-2002 touch screen dual-column universal tensile testing machine is a high-precision material test device featuring a rigid double-column structure for stable operation and high load capacity. Supported by interchangeable fixtures, it flexibly conducts tensile, compression, bending, shearing, peeling, and tearing tests for various materials.
This machine is widely used for testing metals, plastics, rubber, textiles, packaging materials, leather, cables, and composite materials. It is suitable for factory quality control, laboratory research and development, and academic testing applications.
The intuitive full touch screen supports parameter setting, real-time data display, curve plotting, and automatic report output, significantly boosting testing efficiency and accuracy.
Compliance Standards
- ISO 527 - Plastics - Determination of tensile properties
- ASTM E8 - Metallic materials - Determination of tensile properties
- ISO 5893 - Rubber, vulcanized or thermoplastic - Determination of tensile stress-strain properties
- ASTM D638 - Standard test method for tensile properties of plastics
- ASTM D412 - Standard test methods for vulcanized rubber and thermoplastic elastomers-tension
- GB/T 228.1 - Metallic materials - Tensile testing at ambient temperature
- GB/T 1040 - Plastics - Determination of tensile properties
Technical Specifications
| Item |
Value |
| Max Test Force |
5KN / 10KN / 20KN / 50KN (optional) |
| Force Accuracy Grade |
0.5 grade (high precision) |
| Force Test Resolution |
1/500000 |
| Test Speed Range |
0.01~500 mm/min |
| Speed Accuracy |
±0.5% of preset speed |
| Effective Test Stroke |
600 mm (800 mm / 1000 mm customizable) |
| Control Mode |
Full touch screen intelligent control |
| Available Test Functions |
Tension, compression, bending, shearing, peeling and tearing tests |
| Fixture Configuration |
Comes with standard universal fixtures; supports customized interchangeable fixtures for diverse samples |
| Data Output |
Automatically calculates tensile strength, yield strength, elongation, compression deformation and other indicators; supports real-time curve display and Excel/PDF report export |
| Protection Function |
Overload protection, over-travel protection and emergency stop protection |
| Power Supply |
220V/380V, 50Hz (customizable) |
| Machine Dimension |
850*550*1650 mm (standard model) |
| Machine Weight |
Approx. 280 kg |
Our Service Process
During the entire business process, we offer consultative selling services:
- Customer Inquiry: Discuss testing requirements and technical details, suggest suitable products, and provide competitive pricing
- Customization Process: Create detailed drawings for custom requirements, provide reference photos, and confirm final solutions and pricing
- Production & Delivery: Manufacture according to confirmed specifications, provide production updates, conduct calibration, and ensure timely delivery
- Installation & Support: Provide field installation services and comprehensive after-sales support
Frequently Asked Questions
1. Are you a manufacturer? Do you offer after-sales service? How can I request service? What is the warranty?
Yes, we are a professional manufacturer of environmental chambers, leather shoe testing equipment, and plastic/rubber testing equipment in China. Every machine purchased includes a 12-month warranty after shipment. We offer 12 months of free maintenance, with an additional 2-month extension to account for sea transportation.
If your machine experiences issues, you can contact us via email or phone. We will troubleshoot the problem through conversation or video chat if necessary. Once the issue is confirmed, we provide solutions within 24 to 48 hours.
2. What is the delivery timeline?
For standard machines in stock: 3-7 working days
For machines not in stock: 15-20 working days after payment receipt
We accommodate urgent requests with special arrangements.
3. Do you accept customization services? Can I have my logo on the machine?
Yes, we offer both standard and customized machines according to your requirements. We provide OEM and ODM services, including placing your logo on the equipment.
4. How do I install and use the machine?
After ordering, we provide English operation manuals and videos via email. Most machines are shipped fully assembled - you simply connect the power cable and begin operation. When necessary, we can assist with on-site installation.
