UP-6111 Rapid Temperature Humidity Environmental Chamber With Real Time Data Logging

  • 1
  • 2

Product name : Temperature Humidity Environmental Chamber

Model NO. : UP-6111

Temperature Range : -70~180ºC

Humidity Range : 20%~98%

Temperature Fluctuation : ±0.5ºC

Temperature Deviation : ±2.0ºC

Brand Name : YOUBI

Model Number : UP-6111

Place of Origin : CHINA

Payment Terms : T/T,D/P,Western Union,Paypal,

Supply Ability : 30 Unit/month

Delivery Time : 5-15 work days

Packaging Details : Professional Export Wooden Box Packaging

Certification : CE,ISO

MOQ : 1 Unit

Price : Negotiable

Contact Now

High-performance Rapid Temperature Change Test Chamber With Real-time Data Logging
Product Overview

Customized rapid temperature rapid rate change test chamber designed for simulating various environmental conditions to test material performance including heat resistance, dry resistance, humidity resistance, and cold resistance.

Applications

Appropriate for testing material performance to define characteristics under various environmental conditions.

Design Standards

GB2423/T5170/10586/10592, IEC68, GJB150, JIS C60068, ASTM D4714, CNS3625/12565/12566

Technical Specifications
Parameter Model 1 Model 2
Internal Dimension (mm) 400×500×500 500×600×750
Overall Dimension (mm) 860×1050×1620 960×1150×1860
Interior Volume 100L 225L
Temperature Range A: -20ºC to +150ºC
B: -40ºC to +150ºC
C: -70ºC to +150ºC
Temperature Fluctuation ±0.5ºC
Temperature Deviation ±2.0ºC
Humidity Range 20% to 98% RH
Humidity Deviation ±2.5% RH
Cooling Rate 1ºC/min
Heating Rate 3ºC/min
Refrigerant R404A, R23
Controller Programmable color LCD touch screen with Ethernet connection
Power Supply 220V 50Hz / 380V 50Hz
Maximum Noise 65 dBA

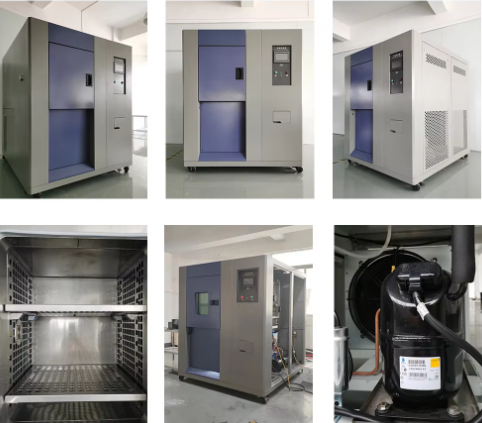

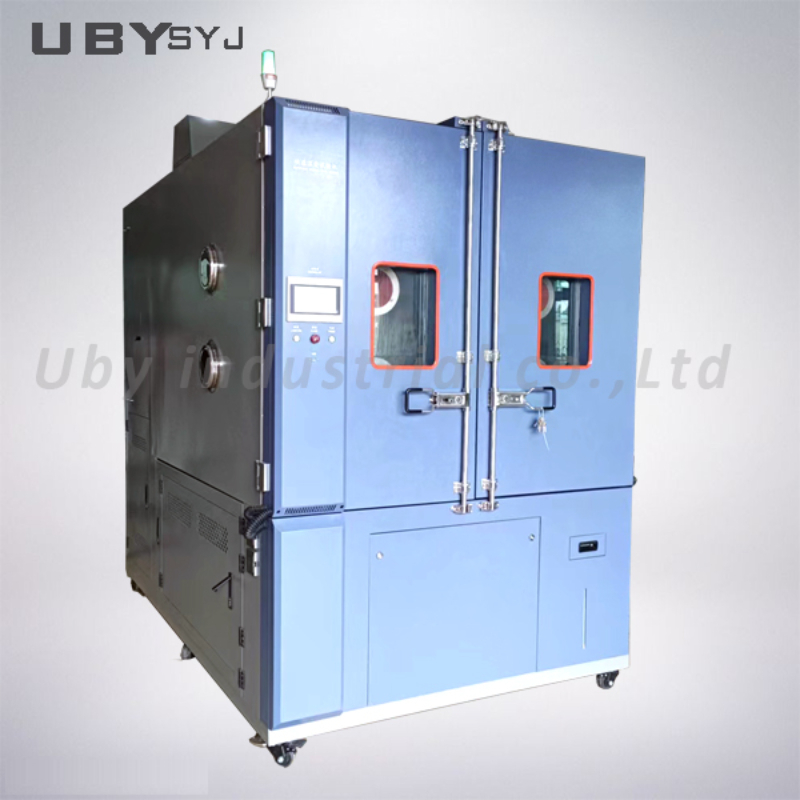

Product Images
UP-6111 Rapid Temperature Humidity Environmental Chamber With Real Time Data Logging
UP-6111 Rapid Temperature Humidity Environmental Chamber With Real Time Data Logging
Service Process
  • Customer Inquiry: Technical requirements discussion, product recommendations, and quotation
  • Specifications Customization: Technical drawings, reference photos, and final solution confirmation
  • Production and Delivery: Manufacturing according to PO requirements, production updates, calibration, and shipping coordination
  • Installation and After-sales: Field installation and ongoing technical support
Frequently Asked Questions
Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?

Yes, we are professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment. Every machine includes 12-month warranty after shipment with free maintenance. For sea transportation, we extend to 14 months. Technical support is available via email or video chat with solutions provided within 24-48 hours.

What about the delivery term?

Standard machines in stock: 3-7 working days; Custom orders: 15-20 working days after payment. Urgent orders receive special arrangements.

Do you accept customization services? Can I have my logo on the machine?

Yes, we offer both standard and customized machines according to your requirements, including OEM and ODM services with logo placement.

How can I install and use the machine?

We provide English operation manuals and videos. Most machines ship fully assembled - simply connect power and begin operation. On-site installation assistance available when necessary.
