Drop Impact Testing Machine Ik01-10 Pendulum Steel Hammer Aluminum Test Bench

Name: Drop Impact Testing Machine Ik0110 Pendulum Steel Hammer Aluminum Test Bench
Brand: YOUBI
Price: 1 USD

Quality Drop Impact Testing Machine Ik01-10 Pendulum Steel Hammer Aluminum Test Bench for sale

MOQ : 1 Unit

Price : Negotiable

Brand Name : YOUBI

Model Number : UP-3012

Certification : CE,ISO

Place of Origin : China

Payment Terms : T/T; D/T; Western Union; Paypal

Supply Ability : 30 Unit/month

Delivery Time : 5-15 work days

Packaging Details : Professional Export Packing

Product name : Impact Test Equipment

Model NO. : UP-3012

Service Support : OEM ODM

Language : Chinese and English

Applications : Traffic lights, outdoor signage, smart meters and etc.

Transport Package : Professional Export Packing

Contact Now

IK Impact Test Equipment IK01-06 Pendulum Steel Hammer Aluminum Test Bench

Product Overview

IK Mechanical Impact Test Apparatus IK01 - IK10 Pendulum Steel Hammer Aluminum Test Bench

This testing device conforms to IEC62262 and is used for mechanical strength testing of sheet metal components including substation arks and metalloid electric energy metering cubicles. The mounting bracket and impact angle are adjustable, designed for energy impact testing exceeding 2J.

Applicable Industries

Electrical & Electronics: Lighting fixtures, switches, instrument housings
Security & Telecommunications: Surveillance cameras, outdoor communication boxes
Automotive: External components like headlights and control panels
Public Infrastructure: Traffic lights, outdoor signage, smart meters
Industrial Equipment: Protective covers, control cabinets in impact-prone environments

Technical Specifications

Impact Energy Parameters

Energy (J)	≤1 ±10%	2 ±5%	5 ±5%	10 ±5%	20 ±5%	50 ±5%
Equivalent Mass ±2% (kg)	0.25 (0.2)	0.5	1.7	5	5	10
Material	nylon	steel
R (mm)	10	25	25	50	50	50
D (mm)	18.5 (20)	35	60	80	100	125
f (mm)	6.2 (10)	7	10	20	20	25
r (mm)	-	-	6	-	10	17

Drop Height Specifications

Energy (J)	0.14	0.2	(0.3)	0.35	(0.4)	0.5	0.7	1	2	5	10	20	50
Equivalent Mass (kg)	0.25	(0.2)	0.25	(0.2)	0.25	(0.2)	(0.2)	0.25	0.25	0.25	0.5	1.7	5	5	10
Drop Height ±1% (mm)	56	(100)	80	(150)	140	(200)	(250)	200	280	400	400	300	200	400	500

IK Code and Impact Energy Correlation

IK Code	IK00	IK01	IK02	IK03	IK04	IK05	IK06	IK07	IK08	IK09	IK10
Impact Energy (J)	a	0.14	0.2	0.35	0.5	0.7	1	2	5	10	20

Product Images

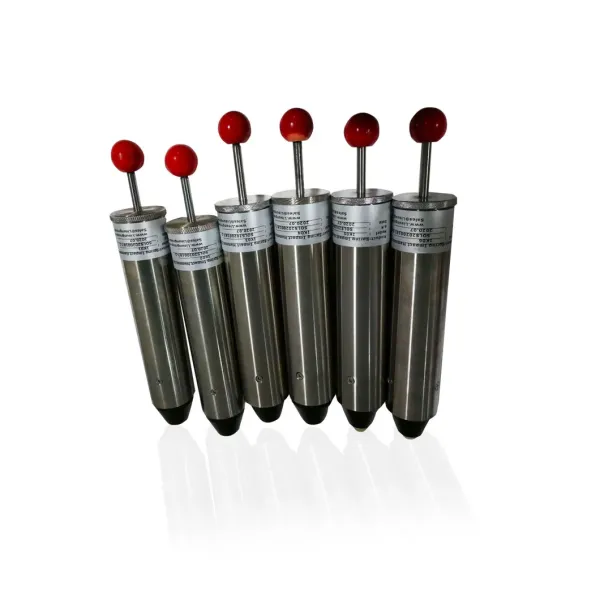

Drop Impact Testing Machine Ik01-10 Pendulum Steel Hammer Aluminum Test Bench

Our Service Process

Customer Inquiry: Technical requirement discussion and product recommendation with competitive pricing
Customization: Detailed drawings and reference photos for specification confirmation
Production & Delivery: Manufacturing with progress updates, calibration services, and timely shipping
Installation & Support: On-site installation and comprehensive after-sales service

Frequently Asked Questions

Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?

Yes, we are a professional manufacturer of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment. Every machine includes a 12-month warranty after shipment, with extended coverage for sea transportation. For technical support, contact us via email or phone for problem resolution within 24-48 hours.

What about the delivery term?

Standard machines with stock: 3-7 working days. Custom orders: 15-20 working days after payment. Urgent requests receive special priority scheduling.

Do you accept customization services? Can I have my logo on the machine?

Yes, we offer both standard and customized machines according to your specifications, including OEM and ODM services with your logo.

How can I install and use the machine?

We provide English operation manuals and videos. Most machines are shipped fully assembled - simply connect power and begin operation. On-site installation assistance is available when necessary.
