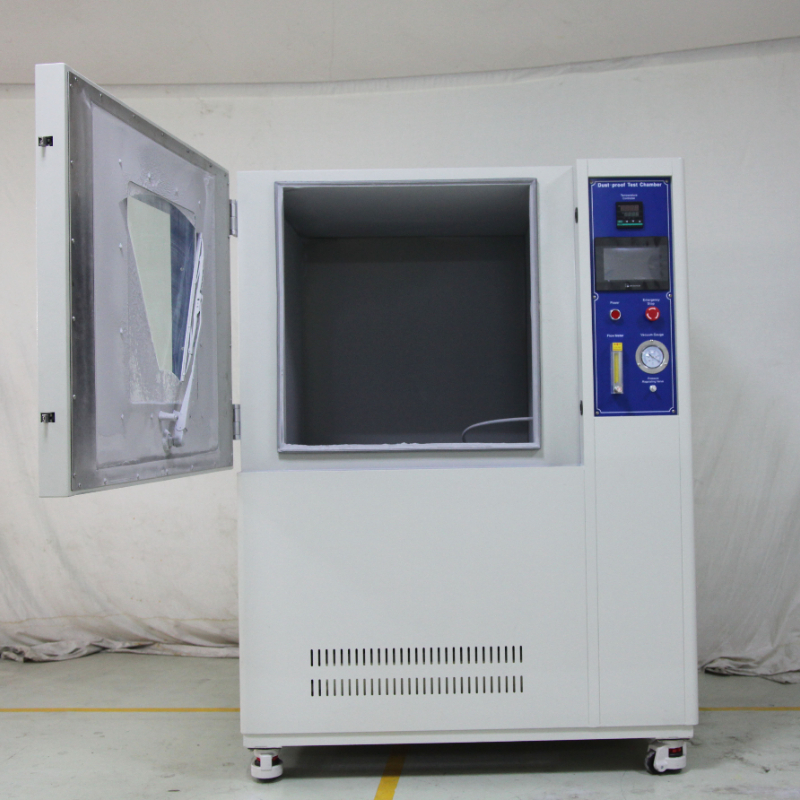

UP-6316 Sleek and Safety-oriented IPX56 Dustproof Test Chamber With Interlock Protection and Vacuum-assisted Dust Circulation
The UP-6316 IPX56 Dustproof Test Chamber is engineered to predict the dust-resistant quality of industrial and electronic products by artificially simulating dusty environments and climatic conditions. This advanced testing solution features interlock protection and vacuum-assisted dust circulation for optimal safety and performance.
Product Characteristics
- Simulates dusty environments to test product durability and sealing performance
- Sand and dust particles are precisely sprayed on test samples using specialized generators and blasting equipment
- Advanced circulating fan and filter systems control environmental conditions and particle movement
- Comprehensive system includes test chamber, sand blasting devices, circulating fans, filtration units, and sample holders
Main Applications
This dustproof test chamber evaluates product shell sealing performance, specifically designed for IP5X and IP6X protection level testing. Ideal for testing outdoor lighting fixtures, automotive components, outdoor cabinets, power meters, and various industrial products under simulated sand and dust conditions.
Technical Specifications
| Model |
UP-6123-125 |
UP-6123-500 |
UP-6123-1000L |
UP-6123-1500L |
| Capacity (L) |
125 |
500 |
1000 |
1500 |
| Inner Size |
500×500×500mm |
800×800×800mm |
1000×1000×1000mm |
1000×1500×1000mm |
| Outer Size |
1450×1720×1970mm |
| Power |
1.0KW |
1.5KW |
1.5KW |
2.0KW |
| Time Setting Range |
0-999h adjustable |
| Temperature Range |
RT+10~70°C (specify when ordering) |
| Experimental Dust |
Talc powder/Alexander powder |
| Dust Consumption |
2-4kg/m³ |
| Dust Reduction Method |
Free powder spraying for dust reduction |
| Vacuum Degree |
0-10.0kpa (adjustable) |
| Protection |
Leakage protection, short circuit protection |
| Supply Voltage |
220V |
Product Images
Our Service Commitment
Customer Inquiry Process: Technical consultation to discuss testing requirements, product recommendations, and competitive pricing based on your specific needs.
Customization Process: Detailed drawings and reference photos provided for custom requirements, with final solution confirmation and pricing agreement.
Production & Delivery: Manufacturing according to confirmed specifications with progress photos, factory calibration, comprehensive testing, and timely delivery coordination.
Installation & Support: Professional installation services and comprehensive after-sales support to ensure optimal performance.
Frequently Asked Questions
Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?
Yes, we are professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment. Every machine includes a 12-month warranty after shipment with free maintenance. Considering sea transportation, we extend this to 14 months for international customers. For technical support, contact us via email or phone - we provide troubleshooting and solutions within 24-48 hours.
What about the delivery term?
Standard machines in stock: 3-7 working days. Custom orders: 15-20 working days after payment confirmation. We accommodate urgent requirements with special arrangements.
Do you accept customization services? Can I have my logo on the machine?
Yes, we offer comprehensive customization services including OEM and ODM. We can incorporate your logo and tailor machines to your specific technical requirements.
How can I install and use the machine?
We provide English operation manuals and videos. Most machines are shipped fully assembled - simply connect power and begin operation. For complex installations, we offer on-site assistance and remote support.
