UP-5037 Vertical Burning Test Chamber for Textile Testing Equipment Compliant with ISO 6940 ISO 6941 ASTM D6431 Featuring 40 ± 2 mm Flame Height and

Name: UP5037 Vertical Burning Test Chamber for Textile Testing Equipment Compliant with ISO 6940 ISO 6941 ASTM D6431 Featuring 40 2 mm Flame Height and
Brand: YOUBI
Price: 1 USD

Quality UP-5037 Vertical Burning Test Chamber for Textile Testing Equipment Compliant with ISO 6940 ISO 6941 ASTM D6431 Featuring 40 ± 2 mm Flame Height and for sale

Brand Name : YOUBI

Model Number : UP-5037

Certification : CE,ISO

Place of Origin : CHINA

MOQ : 1 Unit

Price : Negotiable

Payment Terms : D/P,T/T,Paypal,Western Union,Money Gram

Supply Ability : 20 Unit/monty

Delivery Time : 5-10 work days

Packaging Details : Professional Export Packing

Type : Textile Testing Equipment

Model NO. : UP-5037

Service Support : OEM ODM

Language : Chinese and English

Sample Holder : L422 × W89 × H2 mm

Flame Height : 40 ± 2 mm

Gas Pressure (at burner inlet) : 17.2 kPa ± 1.7 kPa

Environmental temperature : -10 ºC to 30 ºC

Applications : Textile, Fabric and etc.

Specification : Refer to the actual size specifications

Contact Now

UP-5037 Textile Testing Equipment Vertical Burning Test Chamber

Compliant With ISO 6940, ISO 6941, ASTM D6431

Product Overview

The Textile Vertical Burning Test Chamber is designed for determining the flame retardant properties of flame-retardant woven fabrics, knitted fabrics, coated products, laminated products, and curtains. This equipment features accurate testing capabilities, rational structure design, and simple operation.

Widely utilized by textile manufacturers, universities, research institutes, and inspection departments for comprehensive flammability testing.

Compliance Standards

GB5455-2014, ISO 6940, ISO 6941, ASTM D6431

Technical Specifications

Parameter	Specification
Combustion Gas Source	Industrial propane or butane (provided by user)
Sample Holder	L422 × W89 × H2 mm
Test Specimens	(L300 × W80) mm, 5 pieces in warp direction and 5 pieces in weft direction respectively
Burner	Inner diameter: φ11 mm, burner tube tilted at 25° from vertical
Flame Height	40 ± 2 mm
Gas Pressure (at burner inlet)	17.2 kPa ± 1.7 kPa
Flame Application Timer	99.99 h/min/s, adjustable
Afterflame Timer	99.99 h/min/s, adjustable
Afterglow Timer	99.99 h/min/s, adjustable
Ignition System	High-voltage electronic ignition
Overall Dimensions (W×D×H)	L647 × W350 × H857 mm
Power Supply	220V ± 10%, 50Hz; Total power: 300W

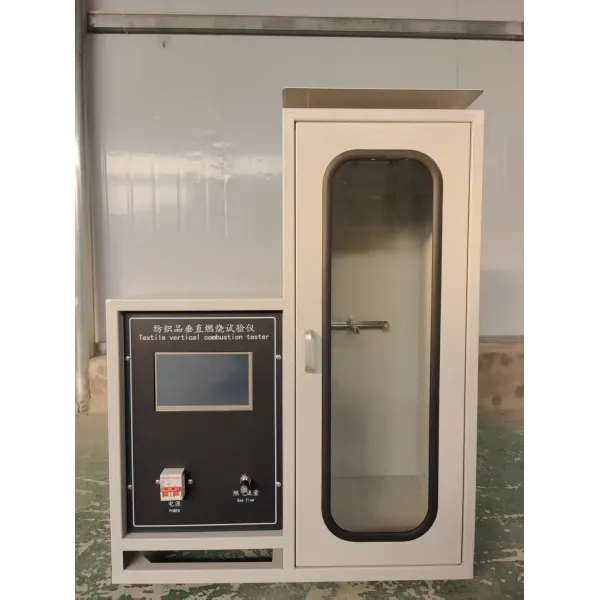

Product Images

UP-5037 Vertical Burning Test Chamber for Textile Testing Equipment Compliant with ISO 6940 ISO 6941 ASTM D6431 Featuring 40 ± 2 mm Flame Height and

Our Service Commitment

We provide comprehensive Consultative Selling services throughout the entire business process:

Customer Inquiry Process

Discuss testing requirements and technical details
Recommend suitable products based on customer needs
Provide competitive pricing according to requirements

Specifications Customization Process

Create detailed drawings for customized requirements
Provide reference photos showing product appearance
Confirm final solution and pricing with customer

Production and Delivery Process

Manufacture machines according to confirmed PO requirements
Provide production progress photos
Conduct factory calibration or third-party calibration as required
Comprehensive testing and quality checking
Professional packing and timely delivery

Installation and After-Sales Service

On-site installation support
Comprehensive after-sales technical support

Frequently Asked Questions

Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?

Yes, we are one of the professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment in China. Every machine purchased from our factory includes a 12-month warranty after shipment. We offer 12 months of FREE maintenance, with an additional 2-month extension considering sea transportation.

If your machine requires service, you can contact us via email or phone. We will diagnose the problem through conversation or video chat if necessary. Solutions are typically provided within 24 to 48 hours after problem confirmation.

What about the delivery term?

For standard machines in stock: 3-7 working days

For non-stock items: 15-20 working days after payment receipt

Expedited arrangements available for urgent requirements

Do you accept customization services? Can I have my logo on the machine?

Yes, we offer both standard and customized machines according to your specific requirements. We provide OEM and ODM services, including placing your logo on the equipment.

How can I install and use the machine?

We provide comprehensive English operation manuals and videos via email after purchase. Most machines are shipped fully assembled - simply connect the power cable to begin operation. On-site installation assistance is available when necessary.
