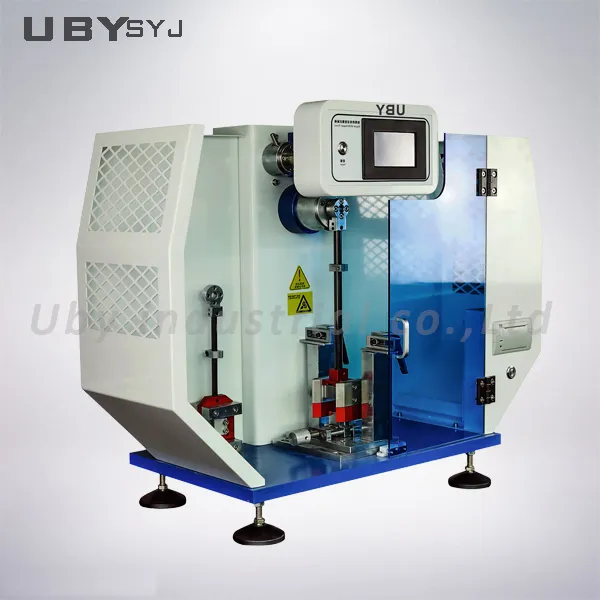

Digital Charpy Izod Impact Tester Machine For Evaluating Plastic Materials Impact Resistance

  • 1
  • 2

MOQ : 1 Unit

Price : Negotiable

Place of Origin : China

Brand Name : YOUBI

Certification : CE,ISO

Packaging Details : Professional Export Packing

Delivery Time : 5-15 work days

Payment Terms : T/T; D/T; Western Union; Paypal

Supply Ability : 30 Unit/month

Model Number : UP-3015

Product name : Charpy Izod Impact Tester

Model NO. : UP-3015

Pendulum energy : 1J, 2J, 4J, 5J

Pendulum angle : 150°

Blade angle : 30°

Blade front angle : 5°

Blade back angle : 10°

Service Support : OEM ODM

Language : Chinese and English

Applications : Plastic,Rubber

Contact Now

Charpy Izod Impact Tester for Evaluating Impact Resistance of Plastic Materials
Product Overview

This digital Charpy impact tester is designed to measure the impact toughness of rigid plastics, reinforced nylon, fiberglass, ceramics, cast stone, insulation materials, and other non-metallic materials. It serves as ideal testing equipment for chemical industries, research institutes, universities, and quality testing departments.

Compliance Standards
  • ISO179-2000 Determination of Plastics - Hard Materials Charpy Impact Strength
  • GB/T1043-2008 Rigid Plastic Charpy Impact Test Method
  • JB/T8762-1998 Plastics Charpy Impact Testing Machine
  • GB/T 18743-2002 Charpy Impact Test Method for Fluid Transport Via Thermoplastic Pipe (Suitable for pipe pieces)
Key Features
  • High-precision intelligent controller with LCD display for intuitive and accurate data reading
  • Patented carbon fiber lever prevents shaking during impact direction testing, improves material rigidity, concentrates impact strength on pendulum centroid, and extends service life
  • Imported high-resolution digital encoders for superior angle measurement accuracy and stability
  • Aerodynamic impact hammer and imported ball bearings minimize mechanical friction losses
  • Automatic calculation of final results with storage and averaging of 12 test data sets
  • Optional Chinese/English interface with customizable units (J/m, KJ/m², kg-cm/cm, ft-lb/in)
  • Built-in mini printer for test data output
Technical Specifications
Parameter Charpy Impact Izod Impact
Pendulum Energy 1J, 2J, 4J, 5J 1J, 2.75J, 5.5J
Pendulum Angle 150°
Blade Angle 30°
Blade Front Angle 5°
Blade Back Angle 10°
Impact Speed 2.9m/s 3.5m/s
Impact Center Distance 221mm 335mm
Blade Filleted Radius R=2mm±0.5mm R=0.8mm±0.2mm
Energy Loss 0.5J ≤4.0J
1.0J ≤2.0J
2.0J ≤1.0J
≥4.0J≤0.5J		 2.75J ≤0.06J
5.5J ≤0.12J
Pendulum Torque Pd1J=0.53590Nm
Pd2J=1.07180Nm
Pd4J=2.14359Nm
Pd5J=2.67949Nm		 Pd2.75J=1.47372Nm
Pd5.5J=2.94744Nm
Print Output Capacity, Angle, Energy, etc.
Power Supply AC220V±10% 50HZ
Product Images
Digital Charpy Izod Impact Tester Machine For Evaluating Plastic Materials Impact Resistance Digital Charpy Izod Impact Tester Machine For Evaluating Plastic Materials Impact Resistance Digital Charpy Izod Impact Tester Machine For Evaluating Plastic Materials Impact Resistance Digital Charpy Izod Impact Tester Machine For Evaluating Plastic Materials Impact Resistance
Our Service Process
Customer Inquiry Process

Discussion of testing requirements and technical details, product recommendations, and quotation based on customer specifications.

Specifications Customization Process

Creation of technical drawings for custom requirements, provision of reference photos, and confirmation of final solution and pricing.

Production and Delivery Process

Manufacturing according to confirmed requirements, production progress photos, final product confirmation, calibration services, and timely shipping arrangements.

Installation and After-Sales Service

On-site installation support and comprehensive after-sales service provision.

Frequently Asked Questions
Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?

Yes, we are a professional manufacturer of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment in China. Every machine includes a 12-month warranty after shipment, with 12 months of free maintenance. Considering sea transportation, we extend an additional 2 months for our customers. If your machine requires service, contact us via email or phone. We will diagnose the issue through conversation or video chat and provide solutions within 24-48 hours.

What about the delivery term?

Standard machines in stock: 3-7 working days. Custom orders: 15-20 working days after payment confirmation. Urgent requirements receive special arrangements.

Do you accept customization services? Can I have my logo on the machine?

Yes, we offer both standard and customized machines according to your requirements, including OEM and ODM services with your logo.

How can I install and use the machine?

We provide English operation manuals and videos via email. Most machines are shipped fully assembled - simply connect the power cable to begin operation. On-site installation assistance is available when necessary.
